This guide will help you set up a basic AWS VPC with a virtual machine (EC2) and database (RDS) using Terraform (Infrastructure as Code).

I’ll be breaking this topic down as follows:

The outline

We’re going to create the following on AWS:

vpc-diagram

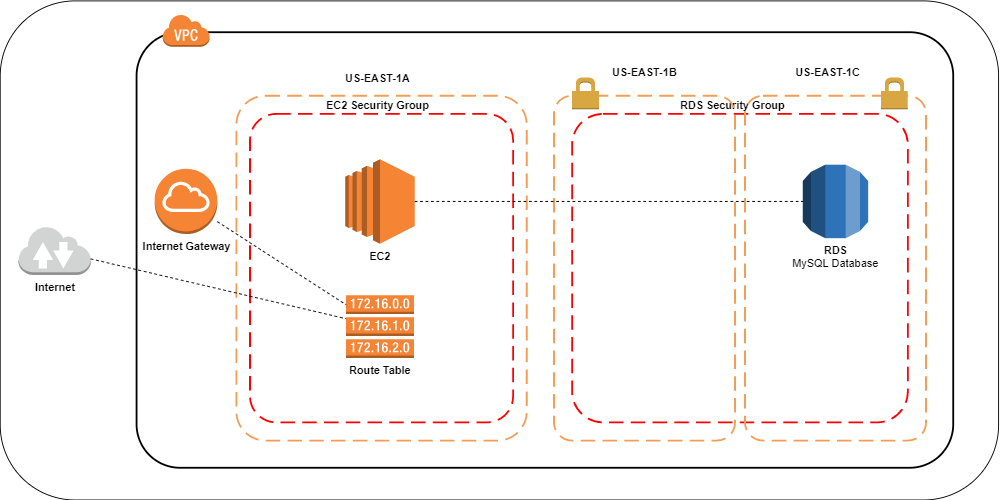

A VPC with 1 Route table that connects the Internet Gateway to the public subnet that hosts the EC2 instance.

Two private subnets configured as 1 subnet group that hosts 1 RDS instance.

Access control is arranged using security groups, one for the EC2 public subnet and 1 for the RDS private subnets.

The reason we have 2 subnets for RDS is because that is a deployment requirement, you cannot launch an RDS instance without configuring it with 2 subnets.

Ideally, you would want to do load balancing for both EC2 and RDS instances. On the EC2 side you would have to add another subnet for the other EC2 instance and connect them with a load balancer. In case one of the subnets goes down for whatever reason, your site is still up and running.

For this article however, we’re going to focus on the minimum setup for development and testing purposes.

VPC

To create a VPC we configure our module as follows:

resource "aws_vpc" "_" {
  cidr_block = var.vpc_cidr

  enable_dns_support   = var.enable_dns_support
  enable_dns_hostnames = var.enable_dns_hostnames
}

resource "aws_internet_gateway" "_" {
  vpc_id = aws_vpc._.id
}

resource "aws_route_table" "_" {
  vpc_id = aws_vpc._.id

  dynamic "route" {
    for_each = var.route

    content {
      cidr_block     = route.value.cidr_block
      gateway_id     = route.value.gateway_id
      instance_id    = route.value.instance_id
      nat_gateway_id = route.value.nat_gateway_id
    }
  }
}

resource "aws_route_table_association" "_" {
  count          = length(var.subnet_ids)

  subnet_id      = element(var.subnet_ids, count.index)
  route_table_id = aws_route_table._.id
}

Please note; I removed the tag blocks for brevity, but you should tag every resource possible to enable easy cost tracking of your deployments and to be able to find everything should anything go wrong with the tfstate.

The route table is configured to be associated with an internet gateway in the aws_route_table_association resource. Any subnet we supply in var.subnet_ids will have access to the route table configuration and the internet gateway.

I call the VPC module like this:

module "vpc" {
  source = "../../modules/vpc"

  resource_tag_name = var.resource_tag_name
  namespace         = var.namespace
  region            = var.region

  vpc_cidr = "10.0.0.0/16"

  route = [
    {
      cidr_block     = "0.0.0.0/0"
      gateway_id     = module.vpc.gateway_id
      instance_id    = null
      nat_gateway_id = null
    }
  ]

  subnet_ids = module.subnet_ec2.ids
}

The vpc_cidr = "10.0.0.0/16" means we’re creating a VPC with 65,536 possible IP addresses. See here for an explanation on the CIDR notation.

The route table is connected to the EC2 subnet via; subnet_ids = module.subnet_ec2.ids. This subnet has full access to the internet via the cidr_block configuration; "0.0.0.0/0".

EC2

To create the EC2 instance, we just need to configure what machine we want and place it in the subnet where our Route Table is present.

In our EC2 module we configure the following:

locals {
  resource_name_prefix = "${var.namespace}-${var.resource_tag_name}"
}

resource "aws_instance" "_" {
  ami                         = var.ami
  instance_type               = var.instance_type
  user_data                   = var.user_data
  subnet_id                   = var.subnet_id
  associate_public_ip_address = var.associate_public_ip_address
  key_name                    = aws_key_pair._.key_name
  vpc_security_group_ids      = var.vpc_security_group_ids

  iam_instance_profile = var.iam_instance_profile
}

resource "aws_eip" "_" {
  vpc      = true
  instance = aws_instance._.id
}

resource "tls_private_key" "_" {
  algorithm = "RSA"
  rsa_bits  = 4096
}

resource "aws_key_pair" "_" {
  key_name   = var.key_name
  public_key = tls_private_key._.public_key_openssh
}

This creates:

  1. AWS EC2 instance
  2. With an elastic IP associated with that instance
  3. A public/private key (PEM key) to access the instance via SSH.

Then we can call it:

module "ec2" {
  source = "../../modules/ec2"

  resource_tag_name = var.resource_tag_name
  namespace         = var.namespace
  region            = var.region

  ami           = "ami-07ebfd5b3428b6f4d" # Ubuntu Server 18.04 LTS
  key_name      = "${local.resource_name_prefix}-ec2-key"
  instance_type = var.instance_type
  subnet_id     = module.subnet_ec2.ids[0]

  vpc_security_group_ids = [aws_security_group.ec2.id]

  vpc_id = module.vpc.id
}

Four main things we need to supply the EC2 module (among other things):

  1. Attach the EC2 instance to the subnet; subnet_id = module.subnet_ec2.ids[0],
  2. attaches the security group; vpc_security_group_ids = [aws_security_group.ec2.id], a security group acts like a firewall.
  3. Supply it with the VPC that it needs to be deployed in; vpc_id = module.vpc.id
  4. AMI identifier, here’s more on how to find Amazon Machine Image (AMI) identifiers.

EC2 Security group

So far we have a VPC setup, an EC2 instance and its subnet, and we’ve configured a reference to the security group the EC2 subnet is using.

A security group acts like a firewall for your subnet, what is allowed to go in ingress and what is allowed to go out egress of your subnet:

resource "aws_security_group" "ec2" {
  name = "${local.resource_name_prefix}-ec2-sg"

  description = "EC2 security group (terraform-managed)"
  vpc_id      = module.vpc.id

  ingress {
    from_port   = var.rds_port
    to_port     = var.rds_port
    protocol    = "tcp"
    description = "MySQL"
    cidr_blocks = local.rds_cidr_blocks
  }

  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    description = "Telnet"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    description = "HTTP"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    description = "HTTPS"
    cidr_blocks = ["0.0.0.0/0"]
  }

  # Allow all outbound traffic.
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

We allow traffic to come in from ports; 22 (SSH), 80 (HTTP), 443 (HTTPS), and we allow ALL traffic on all ports to go out. If you want to further tighten this down, profile which ports your application uses for outbound traffic to increase security.

For ingress you can further tighten this down by supplying a specific IP address that is allowed to connect on port 22.

RDS

We’re almost done with the setup, only our database subnet and instance with security group needs to be configured.

locals {
  resource_name_prefix = "${var.namespace}-${var.resource_tag_name}"
}

resource "aws_db_subnet_group" "_" {
  name       = "${local.resource_name_prefix}-${var.identifier}-subnet-group"
  subnet_ids = var.subnet_ids
}

resource "aws_db_instance" "_" {
  identifier = "${local.resource_name_prefix}-${var.identifier}"

  allocated_storage       = var.allocated_storage
  backup_retention_period = var.backup_retention_period
  backup_window           = var.backup_window
  maintenance_window      = var.maintenance_window
  db_subnet_group_name    = aws_db_subnet_group._.id
  engine                  = var.engine
  engine_version          = var.engine_version
  instance_class          = var.instance_class
  multi_az                = var.multi_az
  name                    = var.name
  username                = var.username
  password                = var.password
  port                    = var.port
  publicly_accessible     = var.publicly_accessible
  storage_encrypted       = var.storage_encrypted
  storage_type            = var.storage_type

  vpc_security_group_ids = ["${aws_security_group._.id}"]

  allow_major_version_upgrade = var.allow_major_version_upgrade
  auto_minor_version_upgrade  = var.auto_minor_version_upgrade

  final_snapshot_identifier = var.final_snapshot_identifier
  snapshot_identifier       = var.snapshot_identifier
  skip_final_snapshot       = var.skip_final_snapshot

  performance_insights_enabled = var.performance_insights_enabled
}

There are a lot of options here, lets grab the tfvars file to see what most of these variables contains:

# RDS
rds_identifier        = "mysql"
rds_engine            = "mysql"
rds_engine_version    = "8.0.15"
rds_instance_class    = "db.t2.micro"
rds_allocated_storage = 10
rds_storage_encrypted = false     # not supported for db.t2.micro instance
rds_name              = ""        # use empty string to start without a database created
rds_username          = "admin"   # rds_password is generated

rds_port                    = 3306
rds_maintenance_window      = "Mon:00:00-Mon:03:00"
rds_backup_window           = "10:46-11:16"
rds_backup_retention_period = 1
rds_publicly_accessible     = false

rds_final_snapshot_identifier = "prod-trademerch-website-db-snapshot" # name of the final snapshot after deletion
rds_snapshot_identifier       = null # used to recover from a snapshot

rds_performance_insights_enabled  = true

A few notes on the configuration I used here;

  1. Instance sizing and encryption: for production make sure you use an instance size that is larger than a db.t2.micro such that you can use encryption on the storage layer.
  2. Maintenance window: This day and time setting is used for patching of your instance.
  3. Public access: Make sure to set public access off for obvious reasons, but this should already be the case anyway if your instance is hosted in a private subnet.
  4. Backups: Two things regarding backups
    1. Providing the final snapshot identifier is useful when destroying the environment, it will automatically create a snapshot with the given name. If you do no supply this variable, you wont be able to remove the RDS instance with the terraform destroy command and you’ll have to do this manually(!).
    2. RDS supports automated backups, make sure to set the retention period (in days) correctly.
  5. Query tracing: To enable in depth tracing of your queries and performance statistics, set performance_insights_enabled to true. This is very useful in analyzing slow queries and, generally, query performance.
  6. Database password: The password for the database is generated, this can be done with this resource:
resource "random_string" "password" {
  length  = 16
  special = false
}

RDS Security group

Finally, we need to supply the security group configuration for RDS such that EC2 can communicate with our Database.

resource "aws_security_group" "_" {
  name = "${local.resource_name_prefix}-rds-sg"

  description = "RDS (terraform-managed)"
  vpc_id      = var.rds_vpc_id

  # Only MySQL in
  ingress {
    from_port   = var.port
    to_port     = var.port
    protocol    = "tcp"
    cidr_blocks = var.sg_ingress_cidr_block
  }

  # Allow all outbound traffic.
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = var.sg_egress_cidr_block
  }
}

The above allows ingress from port 3306 and egress everything.

Conclusion

I hope this guide has been useful, please leave a comment below to let me know what you liked, did not like, suggestions and so on.

Next week I’ll cover (Open)API security with configuration recommendations, and an AWS API firewall solution, AWS WAF.
